[SOLVED] SONY BDP-S780 - My device doesn't see Serviio

No connect!
Help please.
I can do whatever I want, can not connect my BD player. In the serviio console I see my S780. But my Player can not find the serviio server.
Windows 7 (64bit), lan cable, BDP-S780 (Firmware Version M07.R.0579) = Internet connect no problem

I've followed:

"My device doesn't see Serviio
This could be caused by you having multiple IP addresses on the machine and Serviio binding to a wrong one.
Insert IP address of the machine running Serviio into 'Bound IP address' field in Network Settings section in the
console or pass system variable serviio.boundAddr including the IP address when starting the server.
Also make sure that TCP port 8895 and UDP 1900 are open in your firewall.
If you are on a Linux based OS, make sure you set up multicast routes properly.
If on Windows, you can push Serviio service down in starting order."

Also this I have followed:

"On Serviio console:
- Clear the device list by removing each devices --> Save
- Stop Serviio service (exit serviio console)

On Sony TV menu:
- Clear all server list :Home -> Network -> Server Display Settings (options -> delete)
- Restart serviio service.
- Check on serviio console (refresh)
- Check on Sony Menu TV."

[Cerberus]

This could be caused by you having multiple IP addresses on the machine and Serviio binding to a wrong one. Insert IP address of the machine running Serviio into 'Bound IP address' field in Network Settings section in the console.

1. ok to confirm you entered the IP of the pc running serviio in bound ip field?

2. did you restart the pc runign serviio after entering the bound ip?

3. have you set Reserved/prefered Ip address's for all devices on the network via your router (DCHP)?

thanks!!!

this help perfectly:

1. ok to confirm you entered the IP of the pc running serviio in bound ip field?

2. did you restart the pc runign serviio after entering the bound ip?

[moltra]

Can you follow the information in this thread and post the results. Will help serviio to be able to bind to the correct IP address.

http://forum.serviio.org/viewtopic.php?f=3&t=3923#p26629

done.

[moltra]

I hope I've copied the right one.
------------------------------------------------------------------------------------------------------------------------------------------
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_SM;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_MED;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_LRG;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_TN;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/png:DLNA.ORG_PN=PNG_LRG;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/png:DLNA.ORG_PN=PNG_TN;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/gif:DLNA.ORG_PN=GIF_LRG;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:audio/L16:DLNA.ORG_PN=LPCM;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mpeg:DLNA.ORG_PN=MP3;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mpeg:DLNA.ORG_PN=MP3X;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMABASE;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/3gpp:DLNA.ORG_PN=AAC_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/3gpp:DLNA.ORG_PN=AAC_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_MULT5_ADTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mp4:DLNA.ORG_PN=AAC_MULT5_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/3gpp:DLNA.ORG_PN=AAC_MULT5_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=HEAAC_L2_ADTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/3gpp:DLNA.ORG_PN=HEAAC_L2_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=HEAAC_L2_ADTS_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/3gpp:DLNA.ORG_PN=HEAAC_L2_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO_128;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/3gpp:DLNA.ORG_PN=HEAAC_L2_ISO_128;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dts:DLNA.ORG_PN=DTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dts.hd:DLNA.ORG_PN=DTSHD_HRA;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dts.hd:DLNA.ORG_PN=DTSHD_MA;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/vnd.dts.hd:DLNA.ORG_PN=DTSHD_LBR;DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:video/mpeg:DLNA.ORG_PN=MPEG1;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_NTSC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_PAL;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_NA_ISO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_EU;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_EU_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_EU_ISO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_KO_ISO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_60_AC3_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_50_AC3_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_24_AC3_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPLL_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPML_MP3;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPML_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVMED_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVHM_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L31_HD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L32_HD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L3_SD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L3L_SD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L2_CIF30_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_AAC_350;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_AAC_LC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_HD_720p_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-xvid:DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-msvideo:DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/avi:DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-matroska:DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/x-mp2t-mphl-188:DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:image/jpeg:DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/png:DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:image/gif:DLNA.ORG_FLAGS=8cf00000000000000000000000000000,http-get:*:audio/wav:DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:audio/x-wav:DLNA.ORG_FLAGS=9d700000000000000000000000000000,http-get:*:video/mp4:DLNA.ORG_FLAGS=8d700000000000000000000000000000,http-get:*:video/mpeg4:DLNA.ORG_FLAGS=8d700000000000000000000000000000
---------------------------------------------------------------------------------------------------------------------------

That is the biggest part of it. We also need the renderer name information. It can be found in the detailed serviio.log (see signature on how to enable). You have to restart serviio to get it to start the detailed log.

It will be a line in the serviio.log file like below or you can send it to me and I will find it.

  Code:

2011-12-15 04:40:34,220 DEBUG [RendererManager] Looking for a renderer profile for Http headers: [HOST: 192.168.1.101:8895,USER-AGENT: SEC_HHP_[BD]D5300/1.0,ACCEPT-LANGUAGE: en-us]



----------------------
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_SM;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_MED;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_LRG;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/jpeg:DLNA.ORG_PN=JPEG_TN;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/png:DLNA.ORG_PN=PNG_LRG;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/png:DLNA.ORG_PN=PNG_TN;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/gif:DLNA.ORG_PN=GIF_LRG;DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:audio/L16:DLNA.ORG_PN=LPCM;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mpeg:DLNA.ORG_PN=MP3;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mpeg:DLNA.ORG_PN=MP3X;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/x-ms-wma:DLNA.ORG_PN=WMABASE;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_ADTS_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/3gpp:DLNA.ORG_PN=AAC_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/3gpp:DLNA.ORG_PN=AAC_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=AAC_MULT5_ADTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mp4:DLNA.ORG_PN=AAC_MULT5_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/3gpp:DLNA.ORG_PN=AAC_MULT5_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=HEAAC_L2_ADTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/3gpp:DLNA.ORG_PN=HEAAC_L2_ISO;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dlna.adts:DLNA.ORG_PN=HEAAC_L2_ADTS_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/3gpp:DLNA.ORG_PN=HEAAC_L2_ISO_320;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/mp4:DLNA.ORG_PN=HEAAC_L2_ISO_128;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/3gpp:DLNA.ORG_PN=HEAAC_L2_ISO_128;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dts:DLNA.ORG_PN=DTS;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dts.hd:DLNA.ORG_PN=DTSHD_HRA;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dts.hd:DLNA.ORG_PN=DTSHD_MA;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/vnd.dts.hd:DLNA.ORG_PN=DTSHD_LBR;DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG1;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_NTSC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_PS_PAL;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_NA_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_NA_ISO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_EU;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_EU_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_EU_ISO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=MPEG_TS_SD_KO_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mpeg:DLNA.ORG_PN=MPEG_TS_SD_KO_ISO;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_60_AC3_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_50_AC3_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/vnd.dlna.mpeg-tts:DLNA.ORG_PN=AVC_TS_HD_24_AC3_T;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPLL_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPML_MP3;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVSPML_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVMED_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-ms-wmv:DLNA.ORG_PN=WMVHM_BASE;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L31_HD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L32_HD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L3_SD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L3L_SD_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_L2_CIF30_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_BL_CIF15_AAC_350;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_SD_AAC_LC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_PN=AVC_MP4_MP_HD_720p_AAC;DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-xvid:DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-msvideo:DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/avi:DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-matroska:DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/x-mp2t-mphl-188:DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:image/jpeg:DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/png:DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:image/gif:DLNA.ORG_FLAGS=8cf00000000000000000000000000000,
http-get:*:audio/wav:DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:audio/x-wav:DLNA.ORG_FLAGS=9d700000000000000000000000000000,
http-get:*:video/mp4:DLNA.ORG_FLAGS=8d700000000000000000000000000000,
http-get:*:video/mpeg4:DLNA.ORG_FLAGS=8d700000000000000000000000000000
------------------

[moltra]

2011-12-29 10:32:03,314 INFO [RendererManager] Stored a new renderer: uuid='66236ece-a40e-44a7-a766-98724d8c77b2', name = 'Sony BD Player', ipAddress='192.168.137.100', profile = '10'
2011-12-29 10:32:04,064 INFO [RendererManager] Stored a new renderer: uuid='00000000-0000-1010-8000-30f9ed7f889e', name = 'Blu-ray Disc Player', ipAddress='192.168.137.100', profile = '10'

Serviio
- with UPnp header information could detect the presence and identify a device this is the case of Sony Bravia [GREEN DOT]:
<UPnPSearch><FriendlyName>BRAVIA KDL xxxxxxxxx</FriendlyName></UPnPSearch>
- with Http header information could identify a device but could not detect the presence of the device, this is the case of Sony BDP and SMP [ORANGE DOT]:
<HttpHeaders><X-AV-Client-Info>cn="Sony Corporation"xxxxxxxxxx</X-AV-Client-Info></HttpHeaders>

So it is detecting your device via the HttpHeaders.

I do not understand!

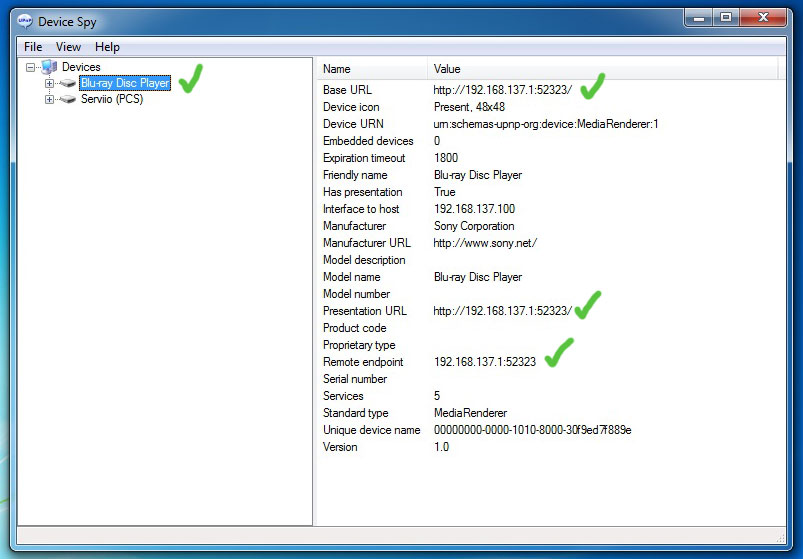

Trouble connecting to my Renderer BDP-S780.

Pc <-- > BDP-S780
(two network cards, ICS) no Router, Internet no problem

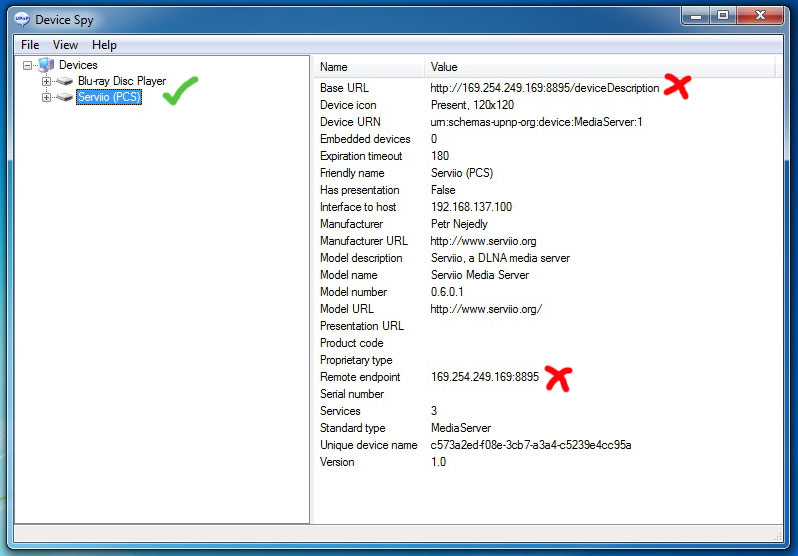

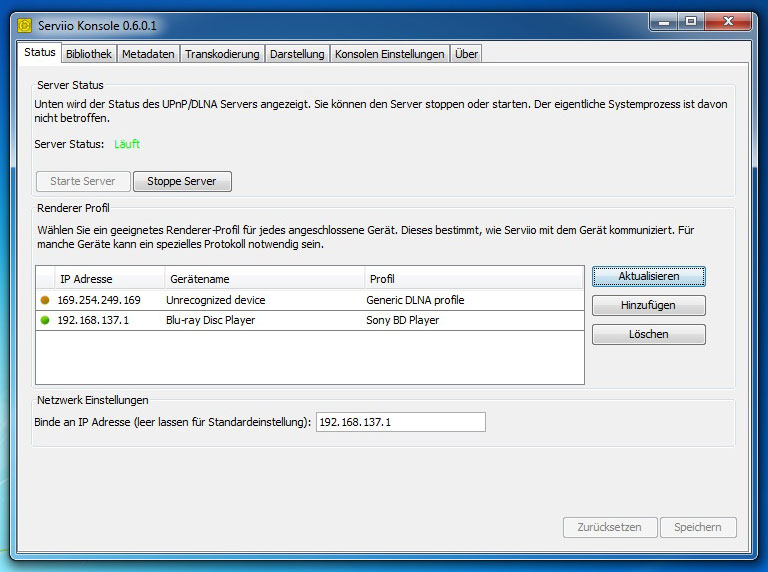

Suddenly, the renderer is no longer serviio. Renderer detected in console, but can't see Serviio. I have changed nothing.

---------------------------------------------------------------------

Windows-IP-Konfiguration

Hostname . . . . . . . . . . . . : PCS
Primäres DNS-Suffix . . . . . . . :
Knotentyp . . . . . . . . . . . . : Hybrid
IP-Routing aktiviert . . . . . . : Nein
WINS-Proxy aktiviert . . . . . . : Nein

Ethernet-Adapter LAN-Verbindung 2:

Verbindungsspezifisches DNS-Suffix:
Beschreibung. . . . . . . . . . . : Realtek PCIe GBE Family Controller
Physikalische Adresse . . . . . . : 00-24-8C-06-FF-36
DHCP aktiviert. . . . . . . . . . : Nein
Autokonfiguration aktiviert . . . : Ja
Verbindungslokale IPv6-Adresse . : fe80::185e:7aa3:1d91:fa11%13(Bevorzugt)
IPv4-Adresse . . . . . . . . . . : 192.168.137.100(Bevorzugt)
Subnetzmaske . . . . . . . . . . : 255.255.255.0
Standardgateway . . . . . . . . . : 192.168.137.1
DHCPv6-IAID . . . . . . . . . . . : 301999244
DHCPv6-Client-DUID. . . . . . . . : 00-01-00-01-16-90-56-2F-74-EA-3A-81-EE-76
DNS-Server . . . . . . . . . . . : 217.237.149.142
217.237.105.205
NetBIOS über TCP/IP . . . . . . . : Aktiviert

Ethernet-Adapter LAN-Verbindung:

Verbindungsspezifisches DNS-Suffix:
Beschreibung. . . . . . . . . . . : Realtek PCI GBE Family Controller
Physikalische Adresse . . . . . . : 74-EA-3A-81-EE-76
DHCP aktiviert. . . . . . . . . . : Nein
Autokonfiguration aktiviert . . . : Ja
Verbindungslokale IPv6-Adresse . : fe80::6135:7bb:decf:f9a9%11(Bevorzugt)
IPv4-Adresse (Auto. Konfiguration): 169.254.249.169(Bevorzugt)
Subnetzmaske . . . . . . . . . . : 255.255.0.0
Standardgateway . . . . . . . . . :
DHCPv6-IAID . . . . . . . . . . . : 242543162
DHCPv6-Client-DUID. . . . . . . . : 00-01-00-01-16-90-56-2F-74-EA-3A-81-EE-76
DNS-Server . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS über TCP/IP . . . . . . . : Aktiviert

Tunneladapter isatap.{669D2CE8-A898-469F-BCF5-BDF533096862}:

Medienstatus. . . . . . . . . . . : Medium getrennt
Verbindungsspezifisches DNS-Suffix:
Beschreibung. . . . . . . . . . . : Microsoft-ISATAP-Adapter
Physikalische Adresse . . . . . . : 00-00-00-00-00-00-00-E0
DHCP aktiviert. . . . . . . . . . : Nein
Autokonfiguration aktiviert . . . : Ja

Tunneladapter isatap.{AE84EF4F-B0EB-464B-B021-EEEDB15EB3ED}:

Medienstatus. . . . . . . . . . . : Medium getrennt
Verbindungsspezifisches DNS-Suffix:
Beschreibung. . . . . . . . . . . : Microsoft-ISATAP-Adapter #2
Physikalische Adresse . . . . . . : 00-00-00-00-00-00-00-E0
DHCP aktiviert. . . . . . . . . . : Nein
Autokonfiguration aktiviert . . . : Ja

Tunneladapter 6TO4 Adapter:

Medienstatus. . . . . . . . . . . : Medium getrennt
Verbindungsspezifisches DNS-Suffix:
Beschreibung. . . . . . . . . . . : Microsoft-6zu4-Adapter
Physikalische Adresse . . . . . . : 00-00-00-00-00-00-00-E0
DHCP aktiviert. . . . . . . . . . : Nein
Autokonfiguration aktiviert . . . : Ja

---------------------------------------------------------------------

2012-01-02 12:13:41,381 INFO [MediaServer] ------------------------------------------------------------------------
2012-01-02 12:13:41,396 INFO [MediaServer] Serviio DLNA media streaming server v 0.6.0.1 (rev. 8e4ee98bff12)
2012-01-02 12:13:41,396 INFO [MediaServer] Petr Nejedly 2009-2011
2012-01-02 12:13:41,396 INFO [MediaServer] http://www.serviio.org
2012-01-02 12:13:41,396 INFO [MediaServer]
2012-01-02 12:13:41,396 INFO [MediaServer] Java 1.6.0_30-Sun Microsystems Inc.
2012-01-02 12:13:41,396 INFO [MediaServer] OS Windows 7 amd64 6.1
2012-01-02 12:13:41,396 INFO [MediaServer] File encoding: windows-1252
2012-01-02 12:13:41,427 INFO [MediaServer] Headless mode enabled: true
2012-01-02 12:13:41,427 INFO [MediaServer] User home dir: C:\
2012-01-02 12:13:41,427 INFO [MediaServer] Temp dir: C:\Windows\TEMP\
2012-01-02 12:13:41,427 INFO [MediaServer] ------------------------------------------------------------------------
2012-01-02 12:13:42,613 INFO [RestletServer] Starting Restlet server exposed on port 23423
2012-01-02 12:13:42,987 INFO [DBSchemaUpdateExecutor] Checking if DB schema needs to be updated
2012-01-02 12:13:44,293 INFO [ServiioConsole] Starting Serviio Console
2012-01-02 12:13:46,284 INFO [ServiioConsole] Connecting to Serviio REST on localhost:23423
2012-01-02 12:13:51,494 INFO [ProfilesDefinitionParser] Parsing Profiles definition
2012-01-02 12:13:52,009 INFO [Messages] Loaded console message bundle for locale: en
2012-01-02 12:13:52,305 INFO [ProfilesDefinitionParser] Added profile 'Generic DLNA profile' (id=1)
2012-01-02 12:13:52,602 INFO [ProfilesDefinitionParser] Added profile 'Samsung TV (B-series)' (id=2)
2012-01-02 12:13:52,820 INFO [ProfilesDefinitionParser] Added profile 'XBox 360' (id=3)
2012-01-02 12:13:52,945 INFO [ProfilesDefinitionParser] Added profile 'Playstation 3' (id=4)
2012-01-02 12:13:53,070 INFO [ProfilesDefinitionParser] Added profile 'Samsung TV (A-series)' (id=5)
2012-01-02 12:13:53,179 INFO [ProfilesDefinitionParser] Added profile 'DirecTV HD-DVR' (id=6)
2012-01-02 12:13:53,444 INFO [ProfilesDefinitionParser] Added profile 'Samsung TV / player (C/D-series)' (id=7)
2012-01-02 12:13:53,491 INFO [ProfilesDefinitionParser] Added profile 'LG TV / player' (id=8)
2012-01-02 12:13:53,756 INFO [ProfilesDefinitionParser] Added profile 'Sony Bravia TV' (id=9)
2012-01-02 12:13:54,193 INFO [ProfilesDefinitionParser] Added profile 'Sony BD Player' (id=10)
2012-01-02 12:13:54,349 INFO [ProfilesDefinitionParser] Added profile 'Panasonic Viera' (id=12)
2012-01-02 12:13:54,505 INFO [ProfilesDefinitionParser] Added profile 'Toshiba REGZA' (id=13)
2012-01-02 12:13:54,552 INFO [ProfilesDefinitionParser] Added profile 'WDTV Live' (id=14)
2012-01-02 12:13:54,583 INFO [ProfilesDefinitionParser] Added profile 'LaCie LaCinema Media Player' (id=15)
2012-01-02 12:13:54,661 INFO [ProfilesDefinitionParser] Added profile 'Manta WIFI Centre' (id=16)
2012-01-02 12:13:54,692 INFO [ProfilesDefinitionParser] Added profile 'Pure Flow' (id=17)
2012-01-02 12:13:54,770 INFO [ProfilesDefinitionParser] Added profile 'Sharp Aquos' (id=18)
2012-01-02 12:13:55,067 INFO [ProfilesDefinitionParser] Added profile 'Sony Bravia TV 2011' (id=19)
2012-01-02 12:13:55,316 INFO [ProfilesDefinitionParser] Added profile 'Sony SMP-N100' (id=20)
2012-01-02 12:13:55,379 INFO [CompositeCacheManager] Creating cache manager from config file: /cache.ccf
2012-01-02 12:13:55,379 INFO [ThreadPoolManager] thread_pool.default PoolConfiguration = useBoundary = [true] boundarySize = [2000] maximumPoolSize = [150] minimumPoolSize = [4] keepAliveTime = [300000] whenBlockedPolicy = [RUN] startUpSize = [4]
2012-01-02 12:13:55,394 INFO [CompositeCacheConfigurator] Setting default auxiliaries to null
2012-01-02 12:13:55,394 INFO [CompositeCacheConfigurator] No special CompositeCacheAttributes class defined for key [jcs.default.cacheattributes], using default class.
2012-01-02 12:13:55,394 INFO [CompositeCacheConfigurator] setting defaultCompositeCacheAttributes to [ useLateral = true, useRemote = true, useDisk = true, maxObjs = 100, maxSpoolPerRun = -1, diskUsagePattern = 0 ]
2012-01-02 12:13:55,394 INFO [CompositeCacheConfigurator] No special ElementAttribute class defined for key [jcs.default.elementattributes], using default class.
2012-01-02 12:13:55,394 INFO [CompositeCacheConfigurator] setting defaultElementAttributes to [ IS_LATERAL = true, IS_SPOOL = true, IS_REMOTE = true, IS_ETERNAL = true, MaxLifeSeconds = -1, IdleTime = -1, CreateTime = 1325502835394, LastAccessTime = 1325502835394, getTimeToLiveSeconds() = -1, createTime = 1325502835394 ]
2012-01-02 12:13:55,425 INFO [LRUMemoryCache] initialized LRUMemoryCache for thumbnails
2012-01-02 12:13:55,425 INFO [CompositeCache] Constructed cache with name [thumbnails] and cache attributes [ useLateral = true, useRemote = true, useDisk = true, maxObjs = 1000, maxSpoolPerRun = -1, diskUsagePattern = 0 ]
2012-01-02 12:13:55,425 INFO [LRUMemoryCache] initialized LRUMemoryCache for online_feeds
2012-01-02 12:13:55,425 INFO [CompositeCache] Constructed cache with name [online_feeds] and cache attributes [ useLateral = true, useRemote = true, useDisk = true, maxObjs = 1000, maxSpoolPerRun = -1, diskUsagePattern = 0 ]
2012-01-02 12:13:55,425 INFO [CompositeCacheConfigurator] No special ElementAttribute class defined for key [jcs.region.local_default.elementattributes], using default class.
2012-01-02 12:13:55,425 INFO [LRUMemoryCache] initialized LRUMemoryCache for local_default
2012-01-02 12:13:55,425 INFO [CompositeCache] Constructed cache with name [local_default] and cache attributes [ useLateral = true, useRemote = true, useDisk = true, maxObjs = 1000, maxSpoolPerRun = -1, diskUsagePattern = 0 ]
2012-01-02 12:13:55,425 INFO [CompositeCacheConfigurator] No special ElementAttribute class defined for key [jcs.region.local_resetafterplay.elementattributes], using default class.
2012-01-02 12:13:55,425 INFO [LRUMemoryCache] initialized LRUMemoryCache for local_resetafterplay
2012-01-02 12:13:55,425 INFO [CompositeCache] Constructed cache with name [local_resetafterplay] and cache attributes [ useLateral = true, useRemote = true, useDisk = true, maxObjs = 1000, maxSpoolPerRun = -1, diskUsagePattern = 0 ]
2012-01-02 12:13:55,425 INFO [CompositeCacheConfigurator] Parsed regions [thumbnails, online_feeds, local_default, local_resetafterplay]
2012-01-02 12:13:55,425 INFO [CompositeCacheConfigurator] Finished configuration in 46 ms.
2012-01-02 12:13:55,503 INFO [WebServer] Socket buffer set to 65535 bytes
2012-01-02 12:13:55,519 INFO [Device] Created UPnP Device with UUID: 03c6c160-87ad-3722-90fb-2be115d32127, bound address: 192.168.137.1
2012-01-02 12:13:55,566 INFO [PluginCompilerThread] Looking for plugins at C:\Program Files (x86)\Serviio\bin\..\plugins
2012-01-02 12:13:55,566 INFO [PluginCompilerThread] Started looking for plugins
2012-01-02 12:13:56,205 INFO [AbstractTranscodingDeliveryEngine] Cleaning transcode engine and its data
2012-01-02 12:13:56,268 INFO [WebServer] WebServer starting on port 8895
2012-01-02 12:13:56,283 INFO [EventSubscriptionExpirationChecker] Starting EventSubscriptionExpirationChecker
2012-01-02 12:13:56,283 INFO [EventDispatcher] Starting EventDispatcher
2012-01-02 12:13:56,283 INFO [DiscoveryAdvertisementNotifier] Starting DiscoveryAdvertisementNotifier
2012-01-02 12:13:56,299 INFO [RendererSearchSender] Searching for Renderer devices
2012-01-02 12:13:56,299 INFO [RendererExpirationChecker] Starting RendererExpirationChecker
2012-01-02 12:14:04,204 INFO [Messages] Loaded console message bundle for locale: de
2012-01-02 12:14:04,329 INFO [UpdateChecker] Checking if a new version is available
2012-01-02 12:14:11,629 INFO [ContentDirectoryDefinitionParser] Parsing ContentDirectory definition
2012-01-02 12:14:12,129 INFO [BrowsingCategoriesMessages] Loaded browsing categories message bundle for locale: de
2012-01-02 12:14:22,799 INFO [FeedUpdaterThread] Started looking for information about online feeds
2012-01-02 12:14:22,799 INFO [LibraryAdditionsCheckerThread] Started looking for newly added files
2012-01-02 12:14:22,799 INFO [LibraryUpdatesCheckerThread] Started looking for updates to currently shared files

---------------------------------------------------------------------

please help,

eclp

[Cerberus]

make sure you have set Reserved/preferred IP address's on your router as your IP have change so now serviio is not picked up.

edit

Funny, after a reboot it works again. Why?

[Cerberus]

network conflict some were very hard to troubleshoot remotely.

Only after PC restarting finds the renderer serviio server. Otherwise he findert not serviio.

What can I do? Can this be fixed somehow?




eclp

The problem seems solved.

The error was the wrong IP address of the pc running serviio bound in ip field.
Strange that there is no one noticed.

[Illico]

Strange that there is no one noticed.

Nobody is perfect !!

[Cerberus]

teach me to trust the user to know there own IP

Profile id = "10"

I want the wmv files will be viewed and played back natively (without transcoding). What do I have to change the profile?

Can someone please explain. Thank you.
