Subtitles on Sharp Aquos LC80LE646S

Hello!

I have a huge 80" Sharp Aquos. Nice TV, no subtitles support...

LC80LE646S

I need to burn the subtitles on the streaming.

I use a XPenology system (DSM 4.3), on HP Gen8 Microserver with Serviio 1.4.0-0024.

I've selected "Enable burned-in subtitles - Always" and Serviio is using the Aquos preset, but is NOT transcoding (I see 10% processor load).


My files are avi (mp4, xvid, h264).

The Serviio is using the Sharp Aquos profile.


I've tried the forceVTranscoding="true" from here, but no luck...

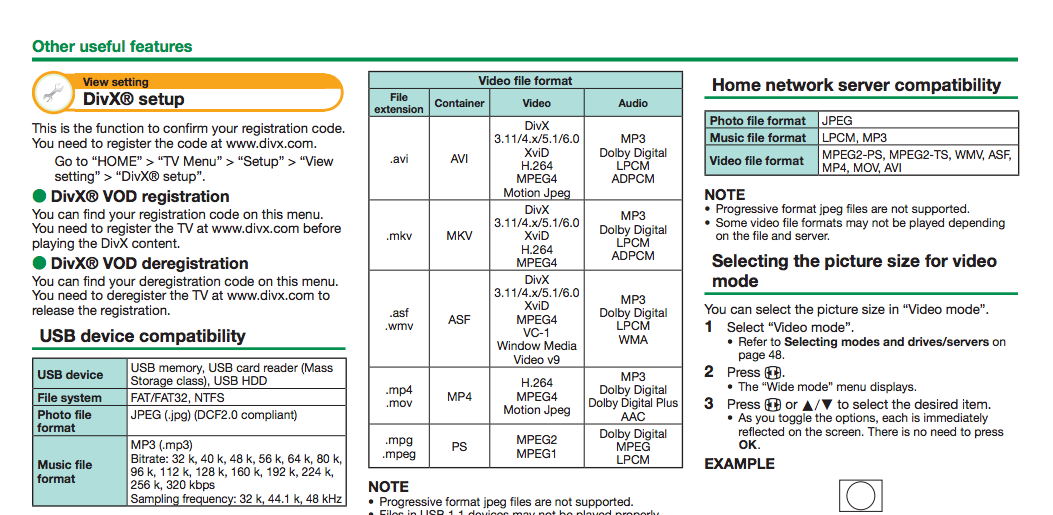

TV supported formats:

video formats


9 days and no reply, plz...

[DenyAll]

Post (attach) a detailed log of you attempting to play a file with subtitles.
Subtitle file name must be the same as the mvie file name (with an optional language qualifier): see http://www.serviio.org/component/conten ... es-support

Here is a sample of the logs

  Code:

2014-01-21 15:15:20,528 DEBUG [SubtitlesService] Found external subtitles file: Tower Heist (2011) DVDRip.srt
2014-01-21 15:15:20,528 DEBUG [ResourceValuesBuilder] Softsubs for media item 277 found, will be served as a resource


  Code:

2014-01-21 15:15:35,492 DEBUG [ResourceTransportRequestHandler] HTTP/1.1 206 Partial Content, headers = [[Content-Type: video/avi,Content-Length: 1412491498,Date: Tue, 21 Jan 2014 13:15:35 GMT,Server: Linux, UPnP/1.0 DLNADOC/1.50, Serviio/1.4,Cache-control: no-cache,Content-Range: bytes 65532-1412557029/1412557030,contentFeatures.dlna.org: DLNA.ORG_OP=01;DLNA.ORG_CI=0;DLNA.ORG_FLAGS=01500000000000000000000000000000,transferMode.dlna.org: Streaming,realTimeInfo.dlna.org: DLNA.ORG_TLAG=*]]
2014-01-21 15:15:35,743 DEBUG [ServiioHttpService] Incoming request from /192.168.1.232:64736: GET /resource/277/MEDIA_ITEM/AVI-0/ORIGINAL HTTP/1.1, headers = [Connection: Close,Host: 192.168.1.6:8895,User-Agent: DLNADOC/1.50 SHARP-AQUOS-DMP/1.1W,getcontentFeatures.dlna.org: 1,transferMode.dlna.org: Streaming,Range: bytes=65532-]]
2014-01-21 15:15:35,743 DEBUG [RendererDAOImpl] Reading a Renderer with ip address 192.168.1.232
2014-01-21 15:15:35,744 DEBUG [RendererDAOImpl] Reading a Renderer with ip address 192.168.1.232
2014-01-21 15:15:35,744 DEBUG [WebServer] I/O error: Connection reset
2014-01-21 15:15:35,744 DEBUG [ResourceDeliveryProcessor] Resource request accepted. Using client 'Identifier=192.168.1.232, Profile=Sharp Aquos'
2014-01-21 15:15:35,744 DEBUG [ResourceDeliveryProcessor] Request for resource 277 and type 'MEDIA_ITEM' received
2014-01-21 15:15:35,744 DEBUG [MediaResourceRetrievalStrategy] Getting information about media item 277 (local)
2014-01-21 15:15:35,744 DEBUG [MediaItemDAOImpl] Reading a MediaItem (id = 277)
2014-01-21 15:15:35,745 DEBUG [VideoDAOImpl] Reading a Video (id = 277)
2014-01-21 15:15:35,745 DEBUG [VideoDeliveryEngine] Retrieving resource information for item 277, format AVI and profile Sharp Aquos
2014-01-21 15:15:35,745 DEBUG [MediaResourceRetrievalStrategy] Getting information about media item 277 (local)
2014-01-21 15:15:35,745 DEBUG [MediaItemDAOImpl] Reading a MediaItem (id = 277)
2014-01-21 15:15:35,746 DEBUG [VideoDAOImpl] Reading a Video (id = 277)
2014-01-21 15:15:35,746 DEBUG [VideoDeliveryEngine] Delivering item '277' for client 'Identifier=192.168.1.232, Profile=Sharp Aquos'
2014-01-21 15:15:35,746 DEBUG [VideoDeliveryEngine] Delivering file 'Tower Heist (2011) DVDRip.avi' in native format
2014-01-21 15:15:35,746 DEBUG [MediaItemDAOImpl] Getting file of media item 277
2014-01-21 15:15:35,747 DEBUG [MediaItemDAOImpl] Marking MediaItem (id = 277) as read
2014-01-21 15:15:35,755 DEBUG [LocalContentCacheDecorator] Cleared cache (local_resetafterplay)
2014-01-21 15:15:35,755 DEBUG [GETMethodProcessor] Stream entity has length: 1412491498
2014-01-21 15:15:35,755 DEBUG [ResourceTransportRequestHandler] HTTP/1.1 206 Partial Content, headers = [[Content-Type: video/avi,Content-Length: 1412491498,Date: Tue, 21 Jan 2014 13:15:35 GMT,Server: Linux, UPnP/1.0 DLNADOC/1.50, Serviio/1.4,Cache-control: no-cache,Content-Range: bytes 65532-1412557029/1412557030,contentFeatures.dlna.org: DLNA.ORG_OP=01;DLNA.ORG_CI=0;DLNA.ORG_FLAGS=01500000000000000000000000000000,transferMode.dlna.org: Streaming,realTimeInfo.dlna.org: DLNA.ORG_TLAG=*]]
2014-01-21 15:15:47,552 DEBUG [SearchManager] Committing search index
2014-01-21 15:16:02,711 DEBUG [DiscoveryAdvertisementNotifier] Multicasting SSDP alive using interface eth0 (eth0) and address 192.168.1.6, timeout = 0
2014-01-21 15:16:02,712 DEBUG [DiscoveryAdvertisementNotifier] Sending 6 'alive' messages describing device 223a9375-eb61-3269-abcf-3ad9f2e63b1f
2014-01-21 15:16:04,532 DEBUG [DiscoveryAdvertisementNotifier] Will advertise again in 00:04:04 (advertisement duration is 1800 sec.)


[DenyAll]

This suggests your srt file is being served as a native resource rather than being burnt in. Try resetting your Subtitle settings in Serviio Console (turn them off, press save, turn them back on, press save).

Also, what are you using as a console (the first post shows a picture of a console, but is missing a field Subtitle Character Encoding, that my version has)? Maybe an issue?

I use the dsm pack called Serviio Console v1.4 beta 002

[DenyAll]

Not sure what OS you are on, but perhaps try Serviio Console that comes with Serviio instead of the Web UI version.

eg. if you have a Windows PC available, download the windows version of Serviio and only install the Serviio Console component. You need to point the console to your server location by editing the ServiioConsole.exe.vmoptions file located in the the C:\Program Folders\Serviio\bin folder (any text editor will do the job) and add a line:

-Dserviio.remoteHost=xxx.xxx.xxx.xxx

where xxx.xxx.xxx.xxx is the IP address of your server. Important - the version of Serviio Console must be the same as the version of Serviio you are running.
