[Solved] Sony KDL-52EX700 - Audio but No Video

[npuser]

Hello all,
I run into a small issue with a Sony KDL-52EX700 TV and some online streams. I have some veetle streams where all i get is an audio but no video. The same stream works perfectly fine in sony bluray. I think it is my sony 2010 profile but i can't seemed to figure this one out. It is driving me crazy. Here is ffplay and ffmpeg output.

One random stream which was active one i ran this ffmpeg.

thanks
NPuser

  Code:


Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation.  All rights reserved.

C:\Program Files\Serviio\lib>ffplay.exe "http://38.101.188.72/flv/4dd469a36a357"

ffplay version N-42477-gcb59e62 Copyright (c) 2003-2012 the FFmpeg developers
  built on Jul 13 2012 13:56:52 with gcc 4.7.1
  configuration: --enable-gpl --enable-version3 --disable-w32threads --enable-ru
ntime-cpudetect --enable-avisynth --enable-bzlib --enable-frei0r --enable-libass
 --enable-libcelt --enable-libopencore-amrnb --enable-libopencore-amrwb --enable
-libfreetype --enable-libgsm --enable-libmp3lame --enable-libnut --enable-libope
njpeg --enable-librtmp --enable-libschroedinger --enable-libspeex --enable-libth
eora --enable-libutvideo --enable-libvo-aacenc --enable-libvo-amrwbenc --enable-
libvorbis --enable-libvpx --enable-libx264 --enable-libxavs --enable-libxvid --e
nable-zlib
  libavutil      51. 64.100 / 51. 64.100
  libavcodec     54. 35.100 / 54. 35.100
  libavformat    54. 16.104 / 54. 16.104
  libavdevice    54.  1.100 / 54.  1.100
  libavfilter     3.  2.100 /  3.  2.100
  libswscale      2.  1.100 /  2.  1.100
  libswresample   0. 15.100 /  0. 15.100
  libpostproc    52.  0.100 / 52.  0.100
Input #0, flv, from 'http://38.101.188.72/flv/4dd469a36a357':
  Metadata:
    canSeekToEnd    : false
  Duration: 00:00:00.00, start: 3307.848000, bitrate: N/A
    Stream #0:0: Video: h264 (Main), yuv420p, 960x540 [SAR 1:1 DAR 16:9], 25 tbr
, 1k tbn, 50 tbc
    Stream #0:1: Audio: mp3, 48000 Hz, stereo, s16, 96 kb/s
3307.84 A-V:-134309Frame changed from size:0x0 to size:960x540
842[ffplay_buffer @ 055159e0] 5.w:960 h:540 pixfmt:yuv420p tb:1/1000 fr:0/1 sar:
1/1 sws_param:
3316.06 A-V:  0.131 fd=   3 aq=    2KB vq=   15KB sq=    0B f=0/0   f=0/0


FFMPEG

C:\Program Files\Serviio\lib>ffmpeg.exe -i "http://38.101.188.72/flv/4dd469a36a3
57"
ffmpeg version N-42477-gcb59e62 Copyright (c) 2000-2012 the FFmpeg developers
  built on Jul 13 2012 13:56:52 with gcc 4.7.1
  configuration: --enable-gpl --enable-version3 --disable-w32threads --enable-ru
ntime-cpudetect --enable-avisynth --enable-bzlib --enable-frei0r --enable-libass
 --enable-libcelt --enable-libopencore-amrnb --enable-libopencore-amrwb --enable
-libfreetype --enable-libgsm --enable-libmp3lame --enable-libnut --enable-libope
njpeg --enable-librtmp --enable-libschroedinger --enable-libspeex --enable-libth
eora --enable-libutvideo --enable-libvo-aacenc --enable-libvo-amrwbenc --enable-
libvorbis --enable-libvpx --enable-libx264 --enable-libxavs --enable-libxvid --e
nable-zlib
  libavutil      51. 64.100 / 51. 64.100
  libavcodec     54. 35.100 / 54. 35.100
  libavformat    54. 16.104 / 54. 16.104
  libavdevice    54.  1.100 / 54.  1.100
  libavfilter     3.  2.100 /  3.  2.100
  libswscale      2.  1.100 /  2.  1.100
  libswresample   0. 15.100 /  0. 15.100
  libpostproc    52.  0.100 / 52.  0.100
Input #0, flv, from 'http://38.101.188.72/flv/4dd469a36a357':
  Metadata:
    canSeekToEnd    : false
  Duration: 00:00:00.00, start: 3341.040000, bitrate: N/A
    Stream #0:0: Video: h264 (Main), yuv420p, 960x540 [SAR 1:1 DAR 16:9], 25 tbr
, 1k tbn, 50 tbc
    Stream #0:1: Audio: mp3, 48000 Hz, stereo, s16, 96 kb/s
At least one output file must be specified

C:\Program Files\Serviio\lib>

[Illico]

I have some veetle streams where all i get is an audio but no video.

probably something with the AVC/h264 codec profile.

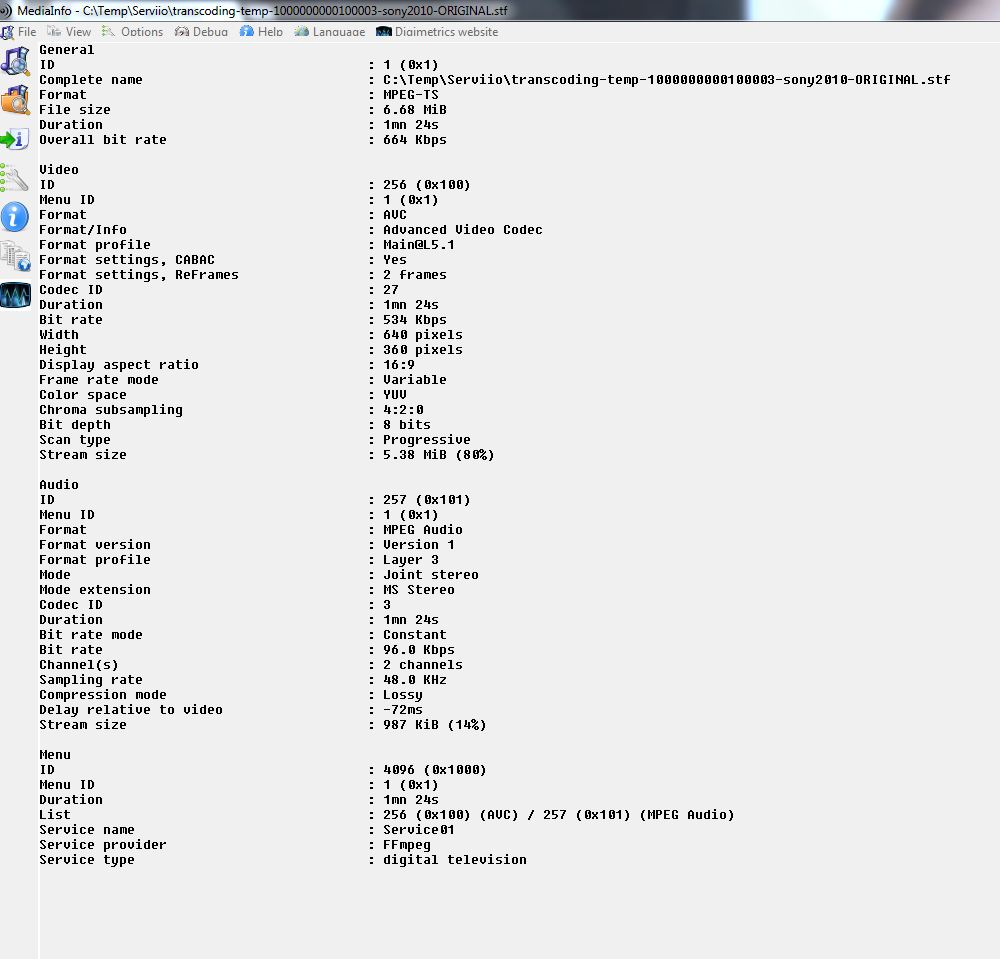

Could you catch the stream and provide information with MediaInfo tools result ?

[npuser]

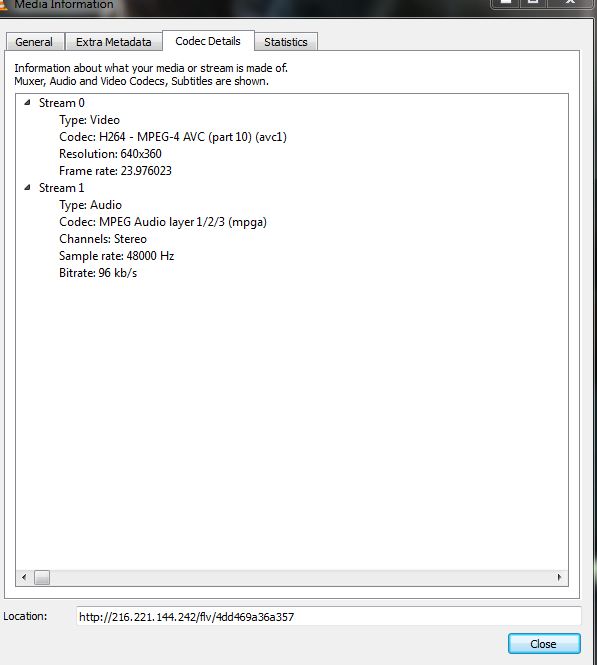

i am researching in the forum for a "howto" generate transcoded file to run mediainfo on. I will post the result soon i can generate one. In the mean time, here is what vlc mediainfo report when i use vlc to play the steam.

thanks for look in into this.

NPuser

[npuser]

Illico - i used following string to copy the stream. Hope this helps.

  Code:

ffmpeg.exe -fflags +genpts -i "http://216.221.144.236/flv/5019b34646dde" -y -copyts -c:v copy -vbsf h264_mp4toannexb -c:a copy -map 0:0 -map 0:1 -sn -f mpegts C:\temp\serviio\transcoding-temp-1000000000100003-sony2010-ORIGINAL.stf

npuser

[Illico]

Thanks,

So the AVC/h264 profile level 5.0 (>4.1) is not supported by sony device, but serviio should detect this and transcode the video to mpeg2video.

Zip, why profile level is not detected for this online source ?

[zip]

I assume that there is a (Online) matcher that gets picked before the level matcher, therefore it will only remux.

[npuser]

Here is my profile. I added online transcoding section to sony 2010 which is a copy of .6.2 generic profile online transcoding section as version 1 the sony 2012 online transcoding did not work for me as per a discussion in beta forum. Thanks for looking into this.

NPuser

[npuser]

I think i got it now. Few of the streams i tried worked with following sony 2010 online transcoding mod.

THank you for the pointer and clues.

NPuser

  Code:

  <OnlineTranscoding>
         <Video targetContainer="mpegts" targetVCodec="mpeg2video" maxVBitrate="17000" targetACodec="ac3" DAR="16:9" aBitrate="320">
            <Matches container="*" vCodec="h264" profile="high" levelGreaterThan="4.1" />
            <Matches container="*" vCodec="h264" profile="main" levelGreaterThan="4.1" />
            <Matches container="matroska" vCodec="vp8" />
         </Video>
            <Video targetContainer="mpegts" targetACodec="ac3" aBitrate="384">
            <Matches container="mp4"/>
            <Matches container="flv" vCodec="h264"/>
            <Matches container="applehttp" vCodec="h264"/>
            </Video>
            <Video targetContainer="mpeg" targetVCodec="mpeg2video" targetACodec="ac3" aBitrate="384">
              <Matches container="asf"/>
              <Matches container="flv" vCodec="h264"/>
            </Video>
            <Video targetContainer="mpeg" targetVCodec="mpeg2video" targetACodec="ac3">
              <Matches container="flv"/>
            </Video>
</OnlineTranscoding>
